ShenZhen BOXYM Technology Co., Ltd.

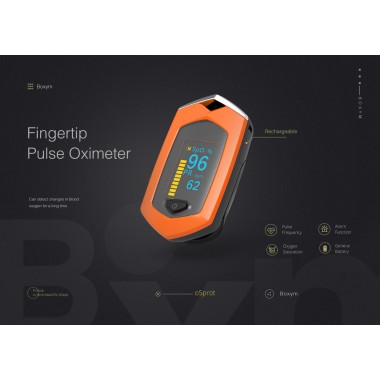

Fingertip Pulse Oximeter Model：Sport

• Brand Name:                        BOXYM
• Commodity Quality Certification:                        3C
• Application:                        Finger
• Material:                        ABS
• Model Number:                        Oximetro oSport
• Size:                        61.8*33.1*26.3mm
• Item Type:                        Blood Pressure
• Parameter:                        blood oxygen,Pulse Rate
• Applicable:                        Sports,Recreation,Fitness,Travel
• Warranty time:                        1 Year
• Display type:                        Duel color OLED
• Display direction:                        4
• Display model:                        6
• interface:                        Type-c
• battery:                        rechargeable lithium battery
• brightness:                        4 adjustable

Detailed Descriptions of Product Functions:
1. Display Type: OLED display
2. SpO2：Measurement range: 70%～99%
Accuracy: ±2% on the stage of 80%～99%;
±3% on the stage of 70%～79%;Resolution: ±1%
Below 70% no requirement
3. PR: Measurement range: 30BPM～240BPM
Accuracy: ±1BPM or ±1%（the larger one）
4. Power: rechargeable lithium battery
5. Power consumption: below 30mA
6. Automatic power-off: the device shuts down by itself when no finger is placed on it ≥8 seconds
7. Dimension: 61.8mm×33.1mm×26.3mm
8. Operation Environment: Operation Temperature：5℃～40℃
Storage Temperature: -10℃～40℃
Ambient Humidity: 15%～80% on operation
10%～80% in storage
Air Pressure: 86kPa～106kPa
Declaration: EMC of this product complies with IEC60601-1-2 standard.
